    OEM Stainless Steel Hoist Lever SS Chain Pulley Block 500kg

    Ask Lasest Price
    Brand Name : Jentan
    Model Number : JTAL
    Certification : CE;GS;EN;ISI;AU;UL;CUL;TUV
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : 7-60 days
    Price : Negotiation
    Supply Ability : 500000pcs per year
    • Product Details
    • Company Profile

    OEM Stainless Steel Hoist Lever SS Chain Pulley Block 500kg

    JTAL Lever Block

    Introducing the international high-end technology.
    Safety factor: four times.
    Small and light, easy to carry.
    High work efficiency and light hand force.
    Easy to maintain and.
    The hoist body uses high-strength alloy steel and in sealed gear cover, to assure safety.
    The brake system uses the two pawls, with higher safety and stability.
    The handle lever is designed in disconnect-type and is easy to carry. When overloaded, the handle will be deformed to remind the user.
    With brake clutch device, the chan can be adjusted and rotated when non-loaded. It can help to adjust the hook position and improve work efficiency.

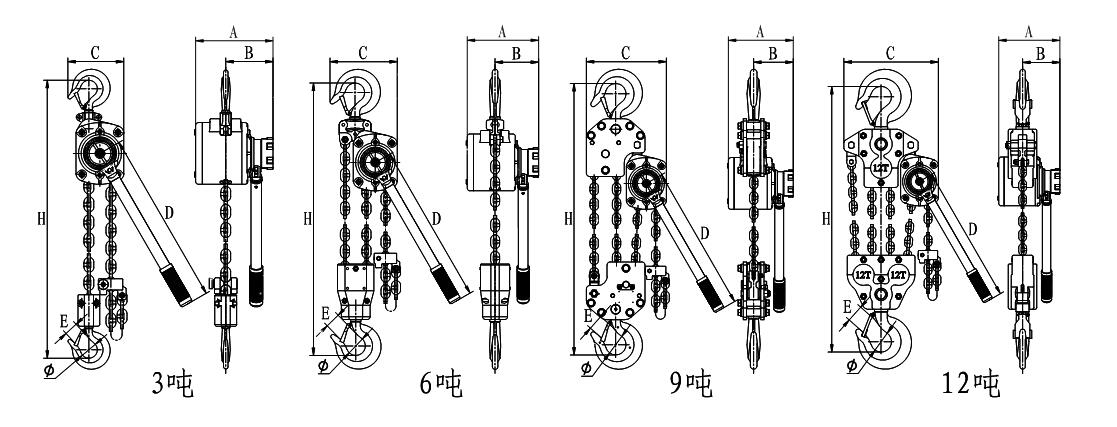

    ModelJTAL-D3JTAL-D6JTAL-D9JTAL-D12
    Capacityt36912
    Standardm1.51.51.51.5
    Running testkN36.873.5110147
    Effort required to lift max loadN240260280280
    Load chain diametermm8888
    Falls1234
    Min distance between hooks(H)mm445575770720
    Dimensions(mm)A205205205205
    B125125125125
    C149195253318
    D460460460460
    E31394553
    φ45556570
    N.W.kg13.220.535.536.5
    Loading Chain Weight/Meterkg1.422.844.265.68
